Automatic dosing machine is a continuous polymer makeup and dosing equipment. The equipment can mix the polymer fully with high efficiency, and then the homogeneous activated polymer can be ready for further treatment. Widely applied as the supporting equipment of sludge dewatering equipment in municipal wastewater, slaughtering, chemical plant and etc.
Features:
Easy to operate, labor saving

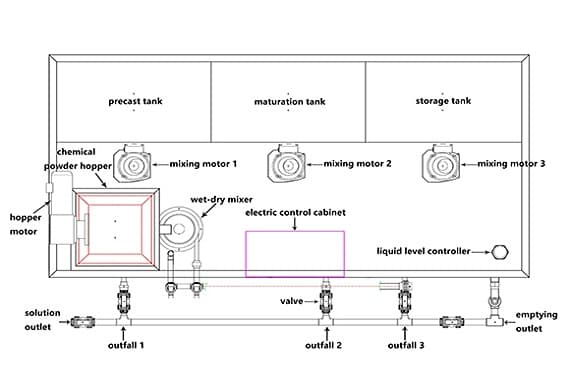

Precast mixing tank, homogeneous slaking tank and solution storage tank are in one equipment, easy to learn and easy to operate, saving labor.
Polymer concentration is adjustable
Water and polymer can get into the tank at the same time, as the flowing rate of the feeding pump can be controlled, so any concentration (within a certain range) can be prepared according to the actual requirements. Well designed machine frame Precious conveying, delicate pre-soaking device and the constant temperature heating method can reduce agglomeration phenomenon caused by improper operation and prevent the line from clogging, so as to ensure the stable concentration. Trustworthy operation The unique structure and proper rotating speed of the mixer not only can ensure the homogenization solution, but also will not destroy the polymer molecular chain. |
AUTOMATIC DOSING MACHINE SPECIFICATION
Model |
ADM1000 |
ADM2000 |
ADM3000 |
ADM4000 |
ADM5000 |
Preparation capacity(L/h) |
1000 |
2000 |
3000 |
4000 |
5000 |
Inlet/Outlet size |
DN25/32 |
DN25/32 |
DN32/40 |
DN32/40 |
DN40/50 |
Dimensions L*W*H(m) |
1.5*1.0*2.5 |
2.1*1.5*2.9 |
2.2*1.5*3.3 |
2.5*1.0*3.6 |
2.5*2.2*3.9 |
Mixer power(kw) |
1.1 |
1.1 |
1.5 |
2.2 |
2.2 |
Feeding motor power(kw) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
Automatic vacuum feeder(kw) |
0.75 |
1.1 |
1.1 |
1.1 |
1.1 |
